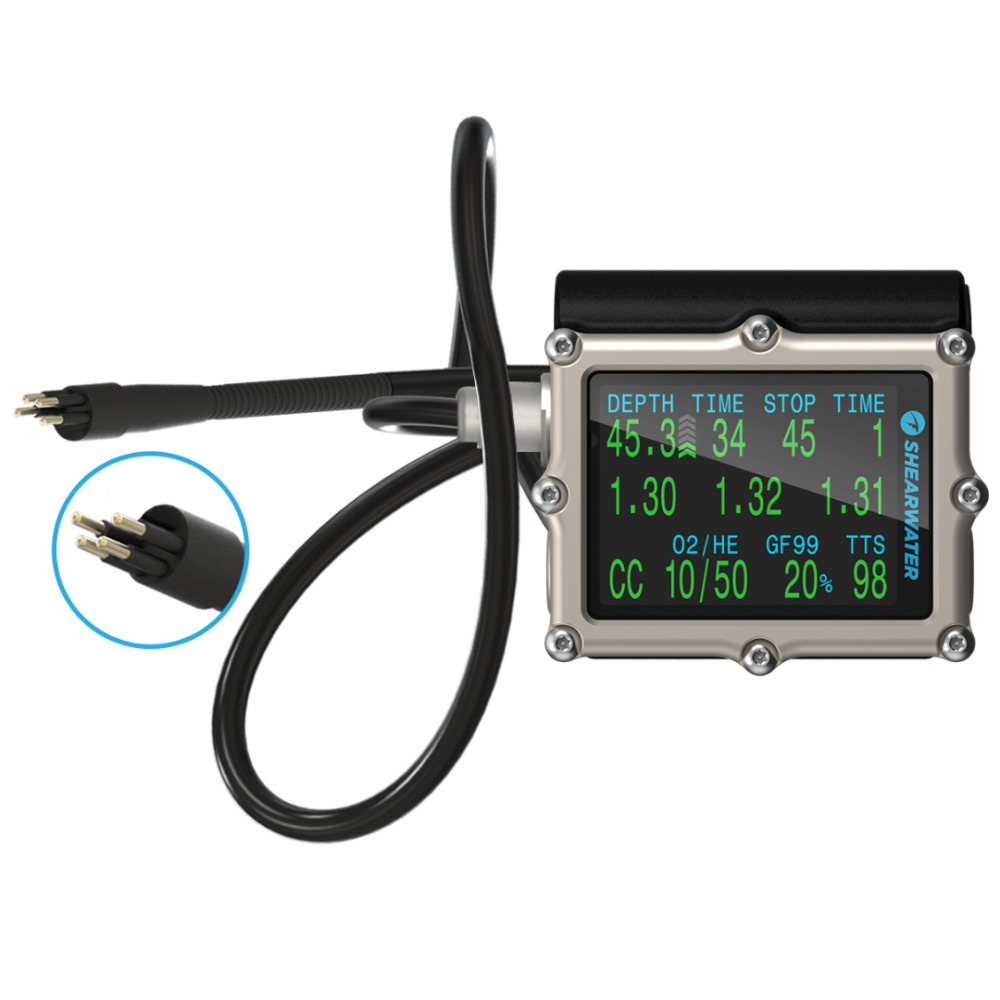

Petrel 3 Monitor 4-pin

The Petrel 3 Monitor (4-Pin) gives divers a connected experience as a robust, full-featured dive computer with rebreather-proven performance. A stunning, easy-to-read, 2.6” AMOLED display is protected by a toughened glass lens, titanium bezel, and piezo touch buttons.

Air integration is standard with up to four Shearwater transmitters to customize a solution from open circuit to rebreather and bailout gas pressure monitoring.

Safety is increased with a strong vibration alert system, and a user-changeable AA battery offers long dive times and ease of replacement.

This model is a Petrel 3 Monitor for 4-pin (analog) CCRs. The External Monitoring Mode provides real time PPO2 monitoring of 1 - 3 O2 sensors. It comes with either a standard 18" cable or a longer 30" cable option for divers who prefer more freedom to route the cable.

Designed and built in Canada.

World-class rebreather monitoring solution
Biggest, brightest, easiest to read display
Air integration capability
Powerful vibration alerts

Modes:

Air
Nitrox
3 Gas Nitrox
OC Tec - Multi gas, trimix decompression computer
CC/BO - Closed circuit fixed PPO2
CC EXT - Closed circuit real time monitoring of 1 or 3 O2 sensors
SCR EXT - Semi-closed monitoring of PPO2 for 1-3 O2 sensors
Gauge - Bottom timer with stop watch and dive logging


Features:

User replaceable AA battery
Air, nitrox, trimix capable
Quick OC bailout from CC
Decompression computer
Dive planning
Bühlmann GF algorithm
Optional Air integration
Connects up to 4 transmitters (optional)
3 axis, tilt compensated, digital compass
Strong vibration warning alerts
Optional VPM-B, Optional DCIEM
Dive logging
Bluetooth wireless technology
Upgradeable firmware

Technical Specs:

Screen Resolution: 320 x 240
Display Type: AMOLED
Display Size: 6.60cm / 2.6"
Toughened Glass Window: Yes
Depth Rating: 290m / 950ft
Number of Gases: 5 Open Circuit / 5 Closed Circuit
Rebreather Connectivity: 4-pin
Dive Log Capacity: approx. 1000 hours
Battery Type: Single AA (any type)
Ships with and recommended battery type: Energizer Ultimate Lithium AA
Battery Capacity (approx.): 5.25 Wh


Battery Life:

Lithium 1.5V: up to 60 hours
AA Alkaline: up to 40 hours
Saft LS14500: up to 100 hours


Dive Computer Dimensions:

WxHxD: 83x75.5x39mm / 3.3"x2.97"x1.5"
Weight: EXT 285g (10.05oz)


Ballistic Nylon Case:

WxHxD: 130x105x70mm / 5.1"x4.1"x2.8"
Weight: 115g (0.25lbs)

Included:

Petrel 3 Dive Computer with 4-pin Connection
Inspection Checklist Card
Product Info Guide
Screen Protector
Black Webbing Strap (double)

*Transmitter Sold Separately
